ProtoStax Enclosure for Breadboards/Custom

ProtoStax Enclosure for Breadboards/Custom

Regular price $15.00 USD
Regular price Sale price $15.00 USD
Sale Sold out
Shipping calculated at checkout.

31 in stock

Color

This Breadboard enclosure is stackablemodularextensible and hackable! Use it to quickly convert your prototype into a functional and good-looking product!

Works with any breadboard-friendly micro-controllers or single-board computers like the Arduino Nano, Adafruit Feather, Particle Argon, Raspberry Pi Pico and so on.  A microUSB/USB plug cutout makes it great to power these and the rest of your circuitry.

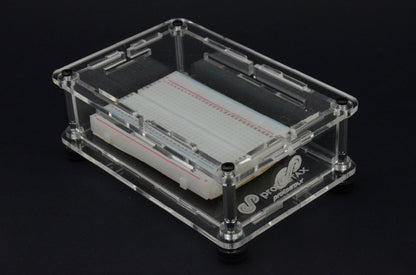

This case fits a 1/2 sized breadboard, or 3 tiny/mini-sized ones. You can fit a full-sized breadboard by horizontally stacking two enclosures.

The case has an internal clearance of over 1.2 inches, which gives you ample room for components & wiring!

You can use this vanilla enclosure to house any custom board that fits its dimensions (see below).

The acrylic material & modular design make it eminently hackable. Drill cutouts or mounting holes into the side walls, top or base plate. You can modify a single side without affecting the others pieces (working with a single flat piece of acrylic is also easier). The modular design makes assembly a snap.

Extension kits and add-ons are available to add functionality to your enclosure - add , switches, ultrasonic sensor, DB9/RS232 port, micro-servo and more! Check out our extension kits and add-ons!

Features

  • Fits half-sized breadboard, or 3 tiny/mini-sized breadboards (4 if the side walls are omitted)
  • Use with any breadboard-friendly micro-controller thanks to the micro-USB/USB cutout
  • Internal clearance of over 1.2 in, which gives you ample room for components and wiring for your breadboard!
  • Made from high quality cast acrylic
  • Clear acrylic provides a beautiful finish with a modern visual design with full view of your electronics

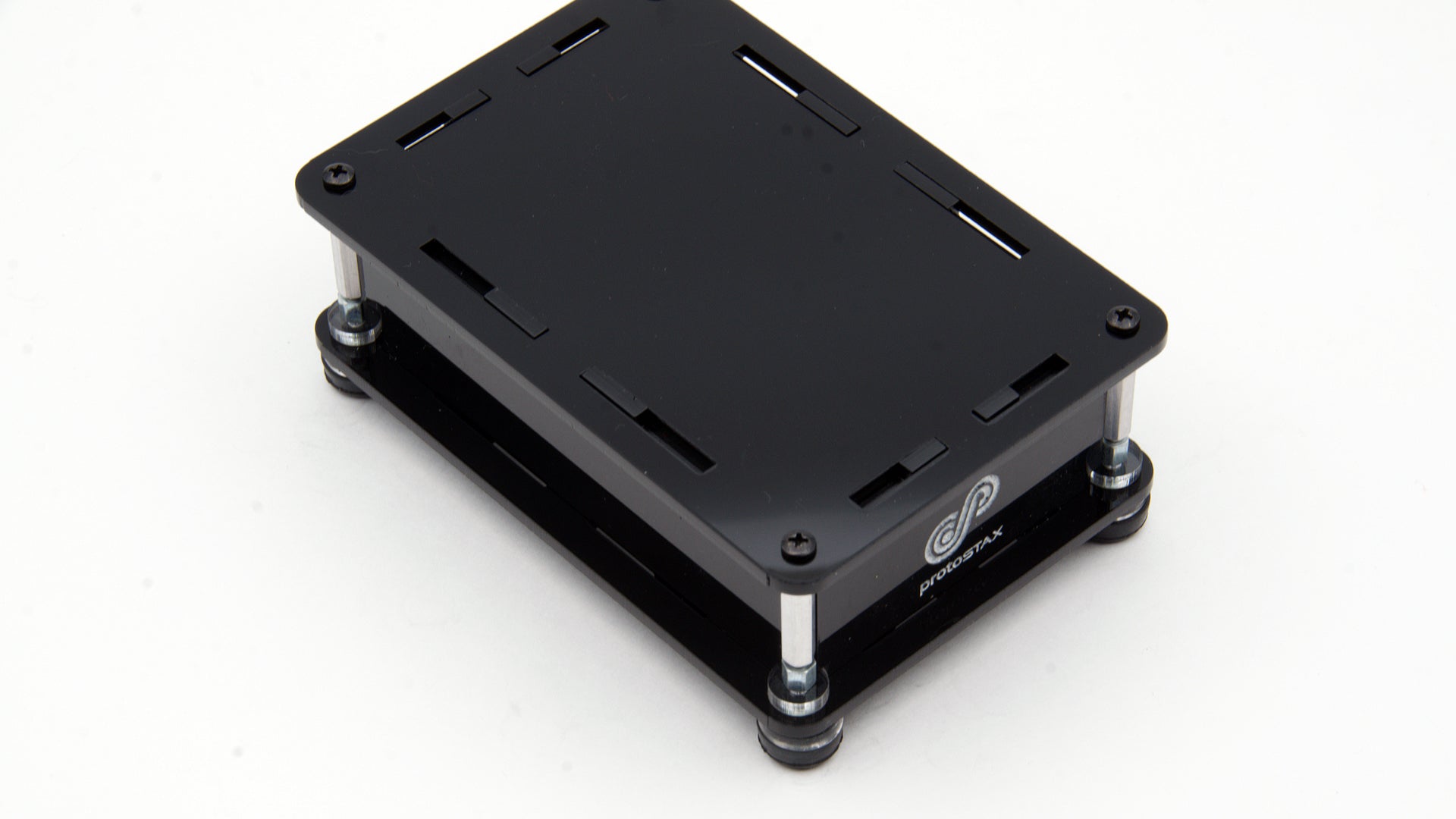

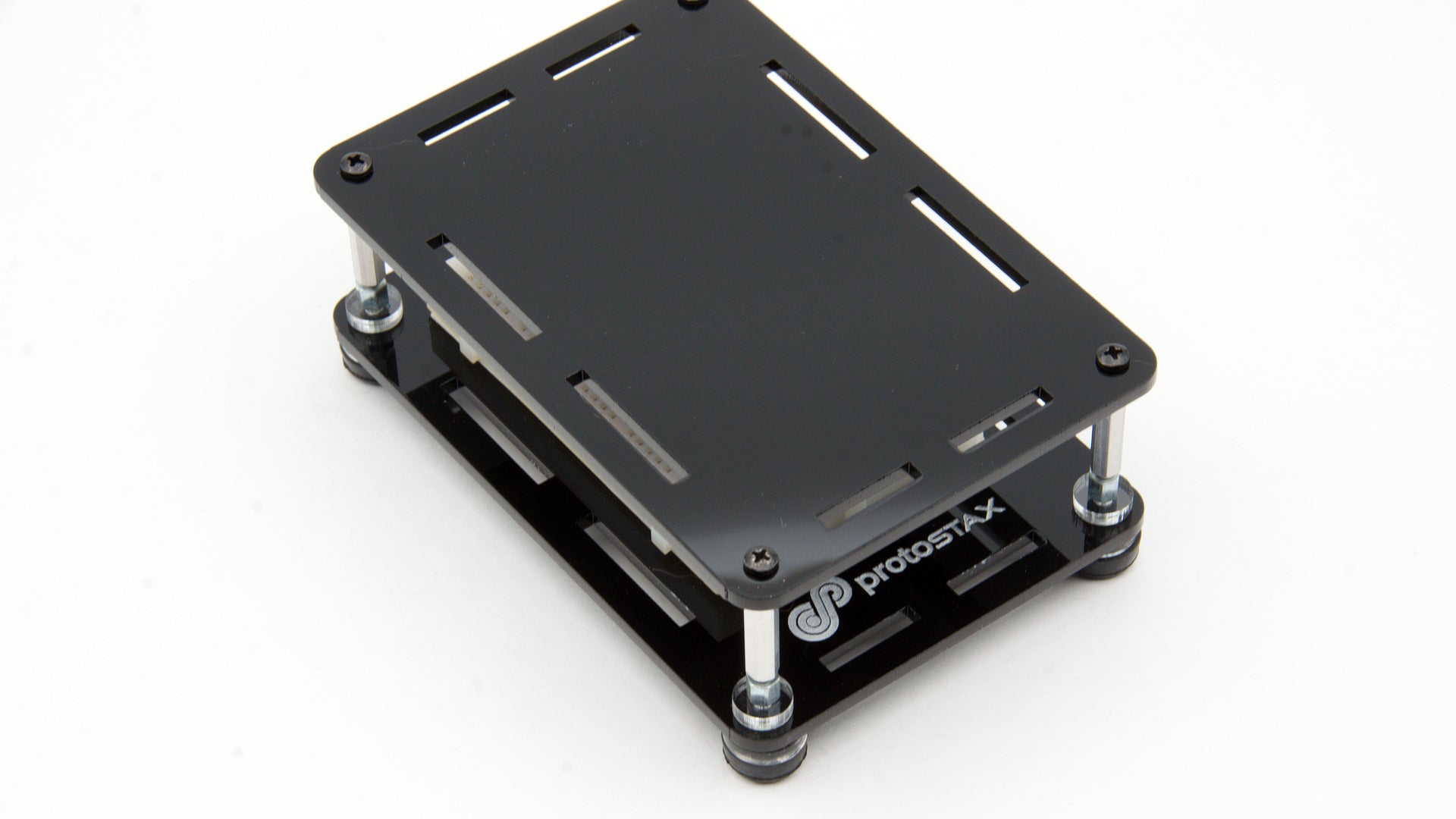

  • Our Obsidian black acrylic gives you a sleek and attractive option when you want to keep your brains and sinew under the covers and just highlight the peripherals
  • Metal standoffs and screws provide solid and durable support
  • Rubber Feet protect your table surface while providing maximum airflow by elevating the enclosure
  • Cable Management: Easily accessible cable management cutouts in the side walls allow you to smoothly insert your cables & access wiring to external systems. In the Open Configuration, the Wall slots on the top and bottom plates (where the side walls usually insert into) can also be used for cable management for even more accessibility and organization.
  • You can mix, match, customize, and expand your project enclosure because ProtoStax enclosures are modular and stackable and work with each other.
  • Extension kits and add-ons help add functionality to your enclosure, such as adding switches, displays, sensor peripherals, etc.

      List of Compatible Devices

      Arduino Nano/MKR/Portenta boards like

      Arduino Nano / 33 IOT / Every / 33 BLE / Sense
      Arduino Micro

      Arduino MKR GSM 1400 / 1000 WIFI / WAN 1300

      Arduino Portenta H7


       Feather boards like

      Adafruit HUZZAH32 – ESP32 Feather Board
      Adafruit Feather HUZZAH -ESP8266
      Adafruit Feather M0 WiFi
      Adafruit Feather 32u4 Bluefruit LE
      Adafruit Feather 32u4 RFM96 LoRa Radio
      Adafruit Feather 328P
      Adafruit Feather M0 RFM69HCW Packet Radio
      Particle Argon
      Particle Boron LTE
      Particle Xenon
      Particle Photon
      Teensy boards
      BlackBoard Artemis Nano
      SparkFun Pro Micro
      SparkFun Thing Plus
      SparkFun SAMD21 Mini Breakout
      Qduino Micro
      and more!

      Basically, any Breadboard friendly micro-controller or single board computer! 😊

      Technical Details

      • 4.84 in length x 3.24 in width x 1.4665 in height (1.8 in height including rubber feet) (122.94 mm x 82.3mm x 37.25 mm (45.72mm including rubber feet))
      • Usable space inside: 4 in length x 2.4 in width x 1.2165 in height (101.6mm x 60.96mm x 30.9mm)

      Visualize in your space using AR!

      View full details

      Visit Our Learning Hub

      • Assembly Instructions - Video Tutorials & User Manual with step-by-step instructions.

      • Sample Projects - with full instructions & code. Find inspiration for your next project.

      • Tips and Tricks - Tips & tidbits on Electronics and Making to get you on your way!

      Take me to the Learning Hub!

      Featured projects

      ProtoStax Enclosures are Stackable, Modular & Extensible

      ProtoStax eases your path from Prototype to Product. Go from a jumble of wires and boards to an attractive product you can proudly display on your coffee table, carry around, share with friends and family, or even sell to customers! Make your prototypes useable and attractive with ProtoStax!

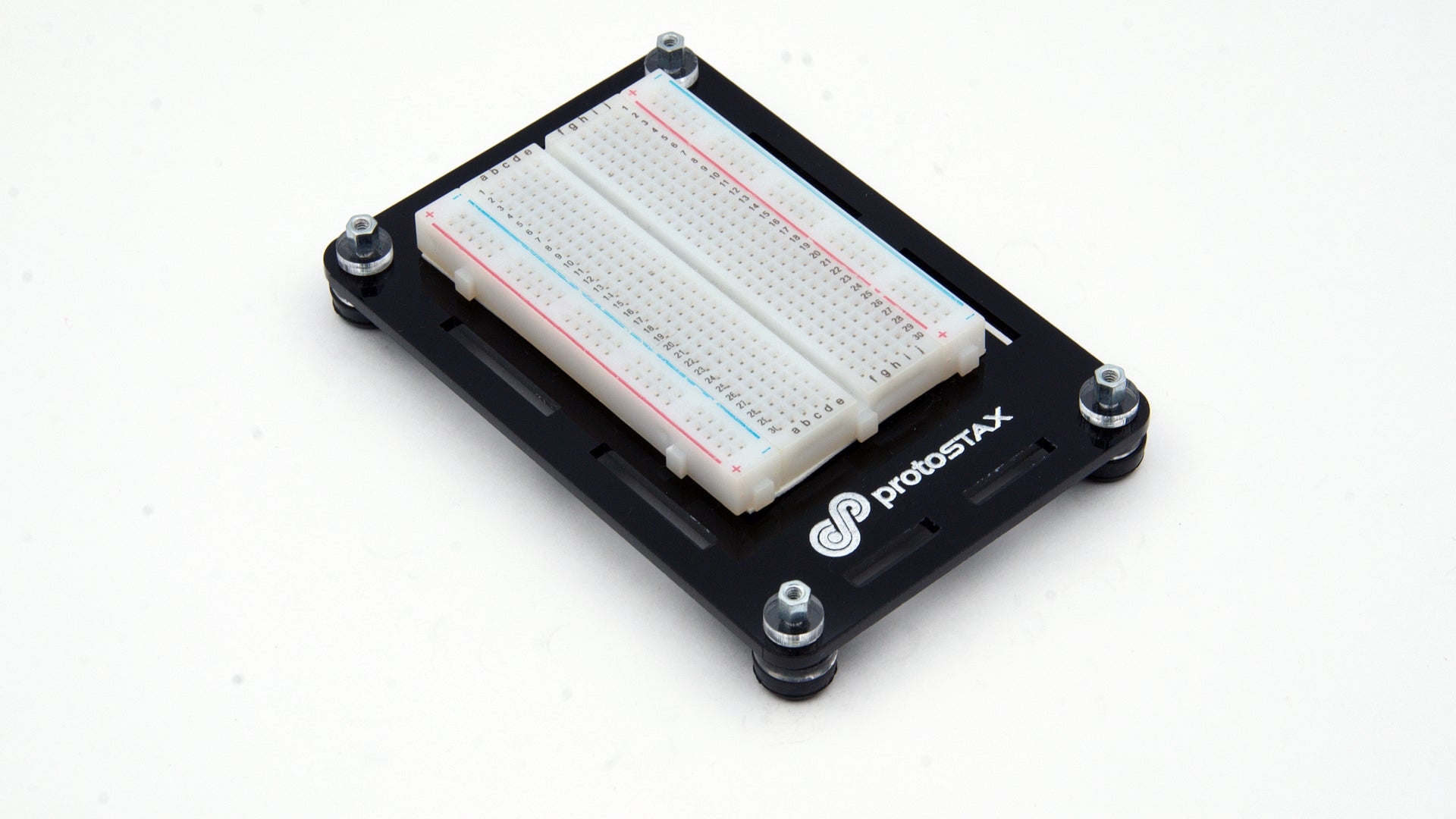

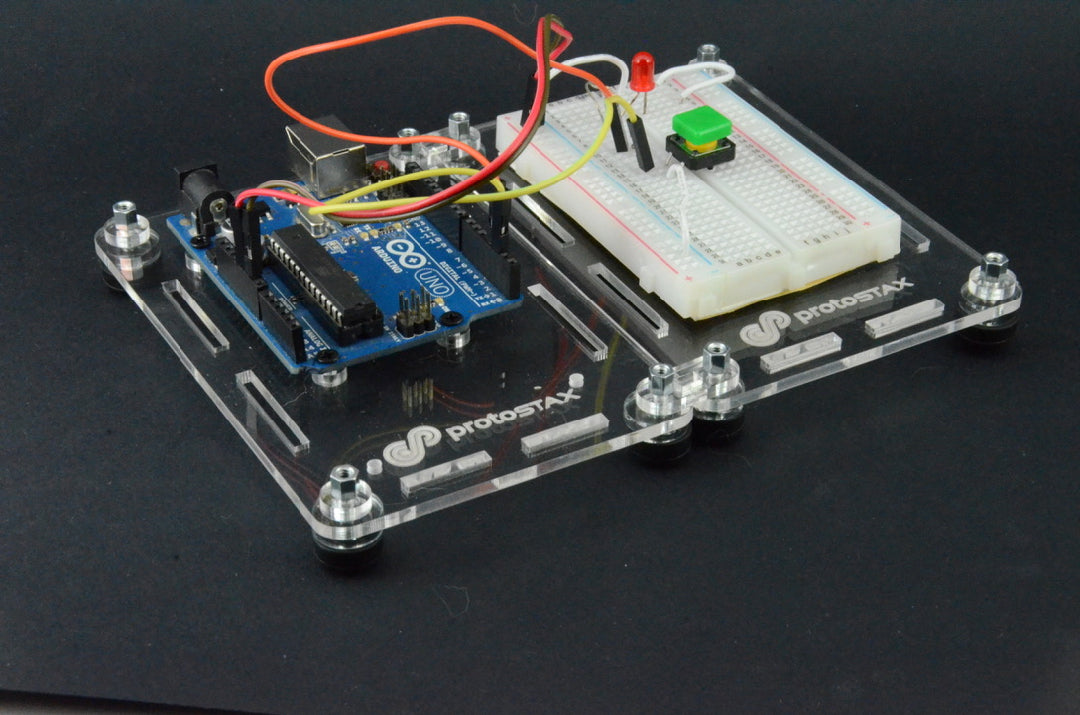

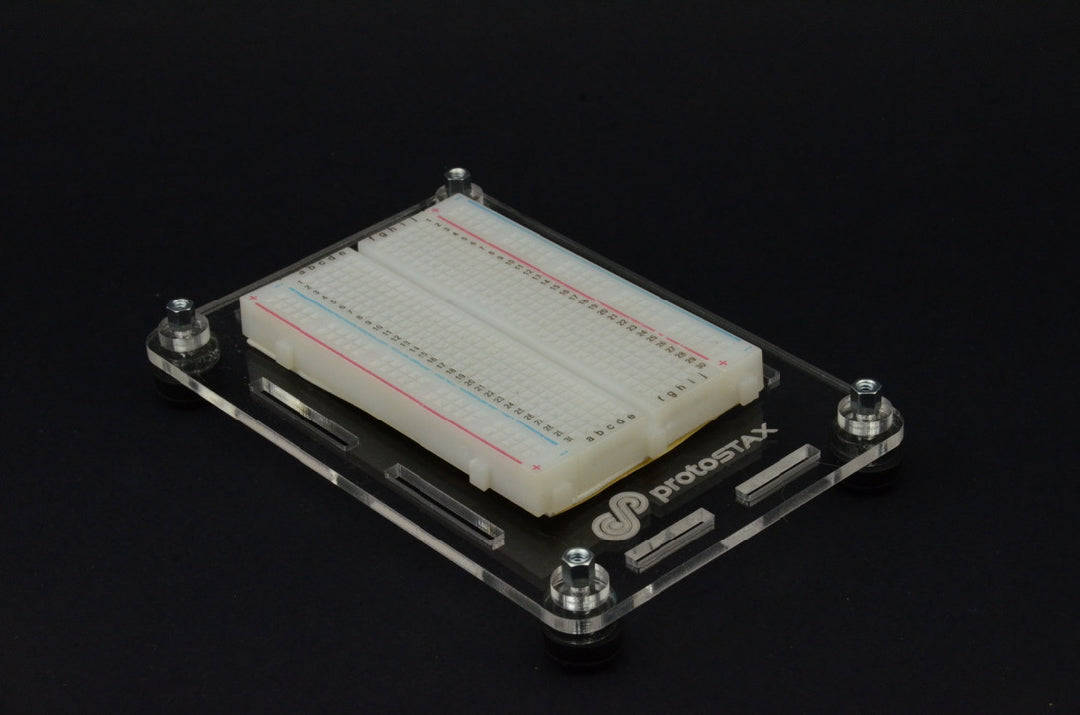

      • ProtoStax Enclosure / Case in Platform Configuration showing Arduino. Pre-drilled and threaded mounting holes make assembly easy and convenient. Acrylic risers elevate board off the surface for improved airflow

        Use it as a prototyping plate, with full and open access to your device while prototyping. Rubber feet protect your board and your table top!

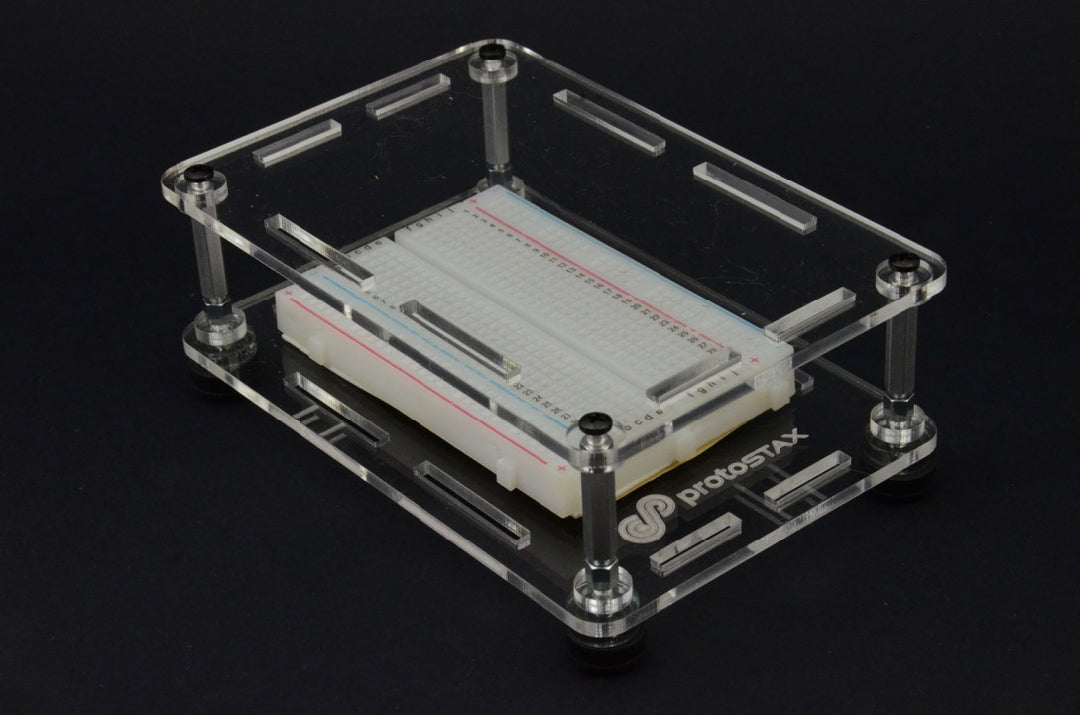

      • ProtoStax Enclosure / Case in Open Configuration showing Arduino

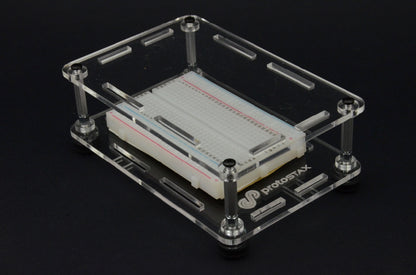

        Omit the side walls and just add the top for an open configuration with more airflow and open access.

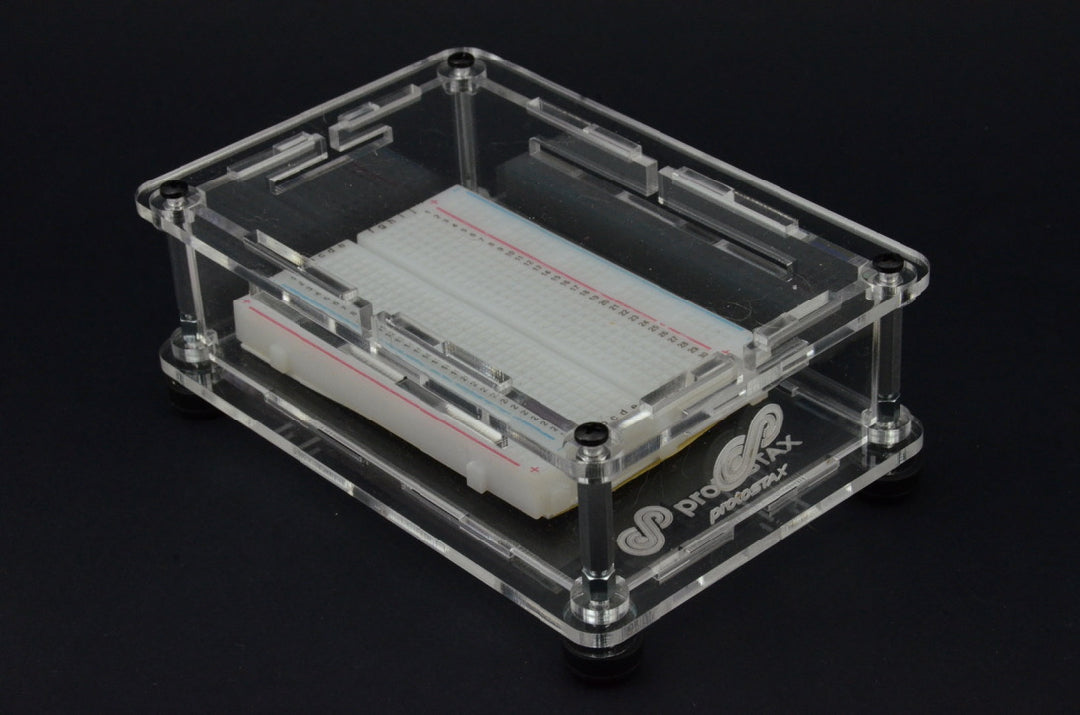

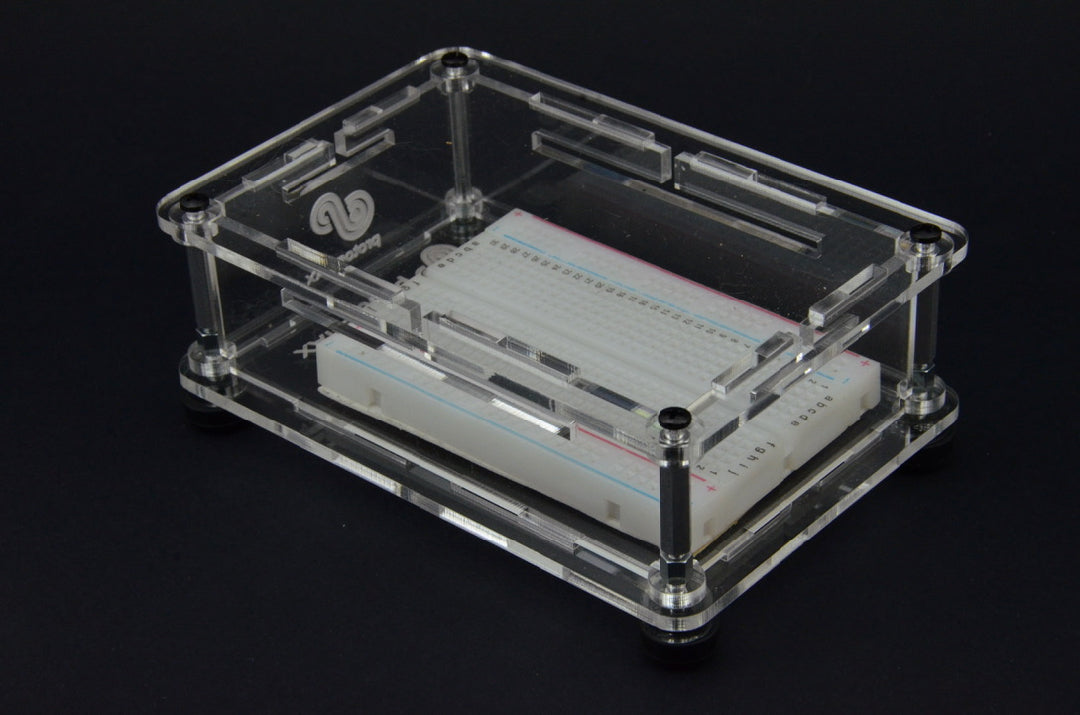

      • ProtoStax Enclosure / Case in Fully Closed Configuration showing Arduino

        Add side walls and the top to form a fully enclosed case for maximum protection.

        The cases offer connectivity to external systems using our unique cable management methods (see features above)

      Extensible

      Extension kits and Add-Ons allow you to add functionality to your enclosure. Add a fan or two, switches, camera & tripod mount, and more! Thanks to our modular design, you can simply swap out existing pieces with new pieces that offer additional functionality like displays, switches, fans, cameras, tripod mounts are more.

      Just filter by "extension kit" or "add-on" in the main shopping page to view the choices, or click below!

      Check out Extension Kits

      Stackable

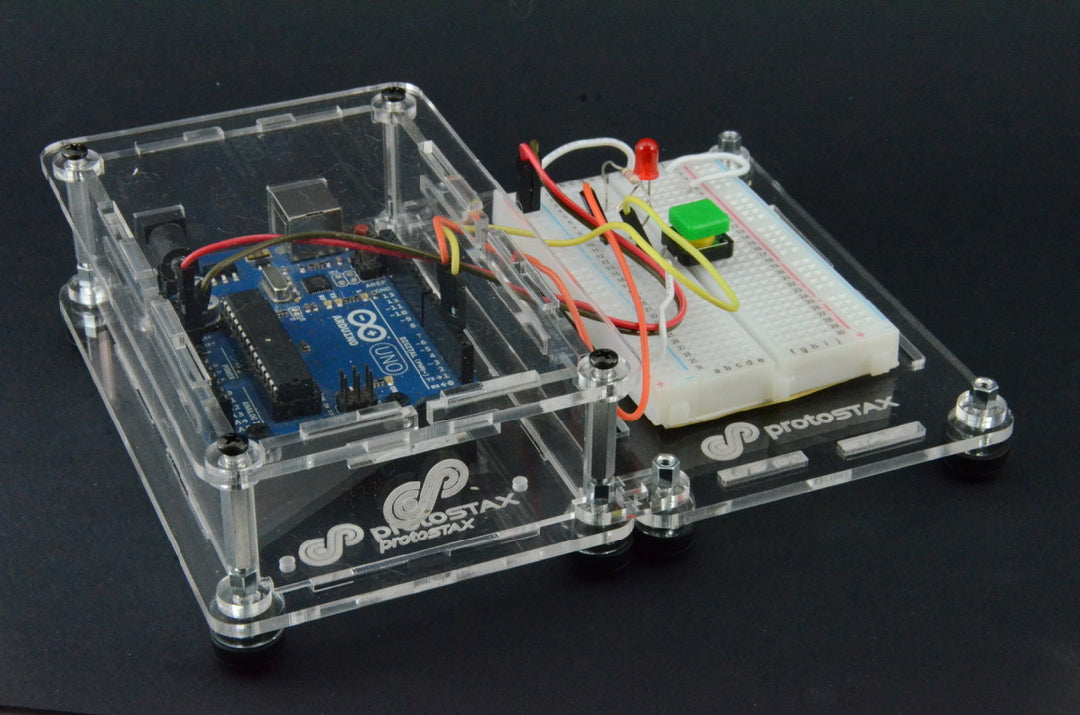

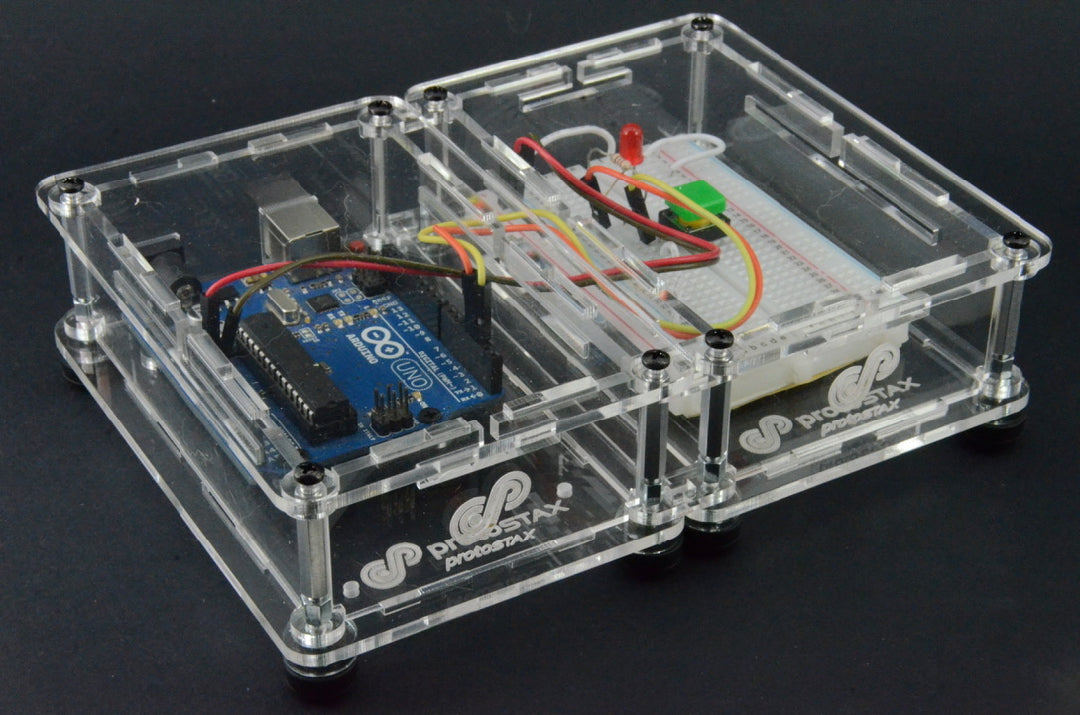

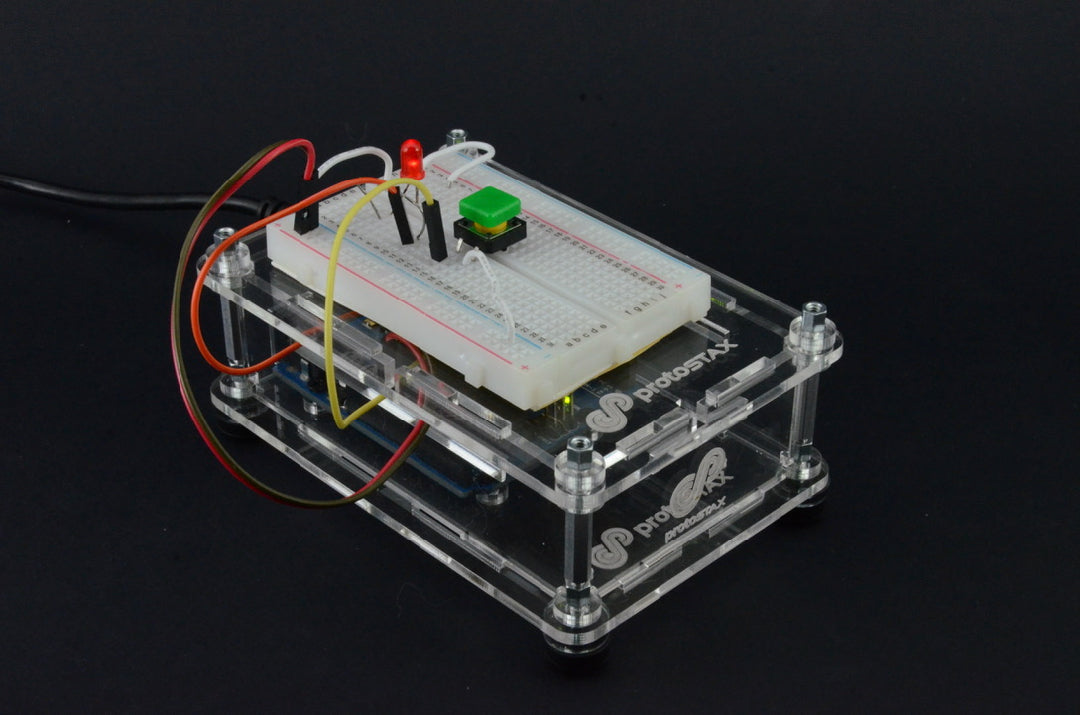

      All ProtoStax cases are compatible with each other and can be stacked side-by-side (horizontally) or one on top of the other (vertically). Mix-and-match multiple ProtoStax cases and put together a larger enclosure from the individual ones! Our Raspberry Pi + Breadboard, or Arduino + Breadboard enclosures are popular bundles, allowing to include more breadboarded circuitry while still making your prototype attractive and usable. Our stacking features and interoperability between enclosures means you can create your ultimate hybrid Raspberry Pi cluster/tower, mix-and-matching various Raspberry Pi A+, B/B+, Zero boards as you see fit!
