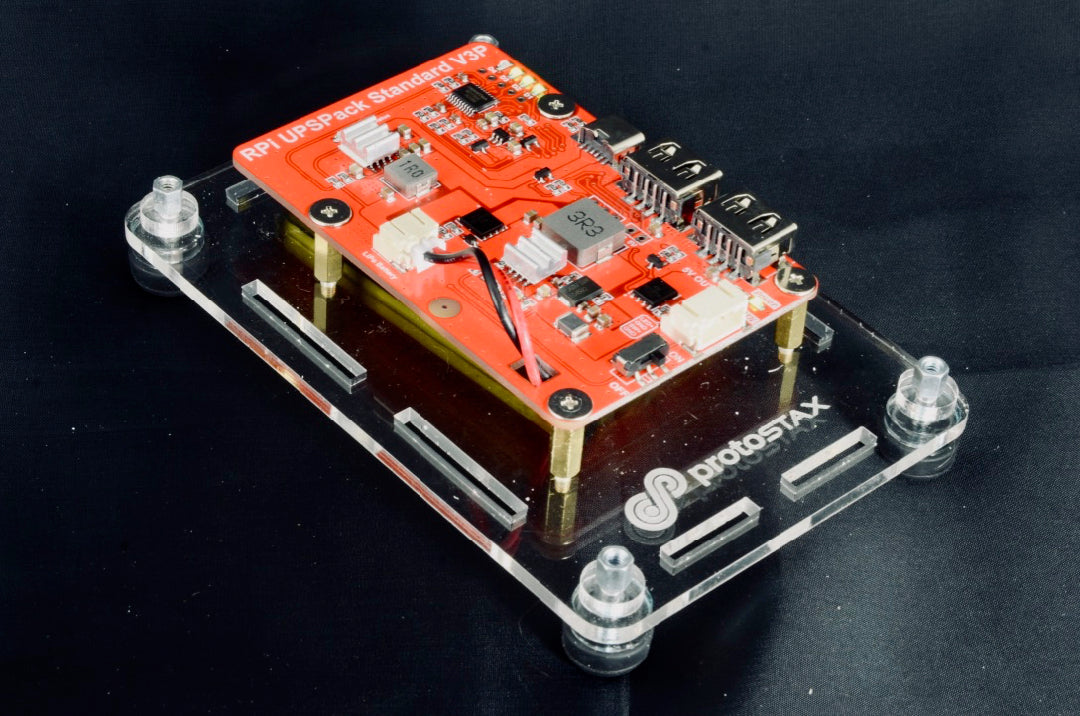

  • ProtoStax Enclosure for RPI UPSPack Standard V3 - Platform Configuration
  • ProtoStax Enclosure for RPI UPSPack Standard V3 - Use a power pack for any 5v systems - Arduino & Raspberry Pi

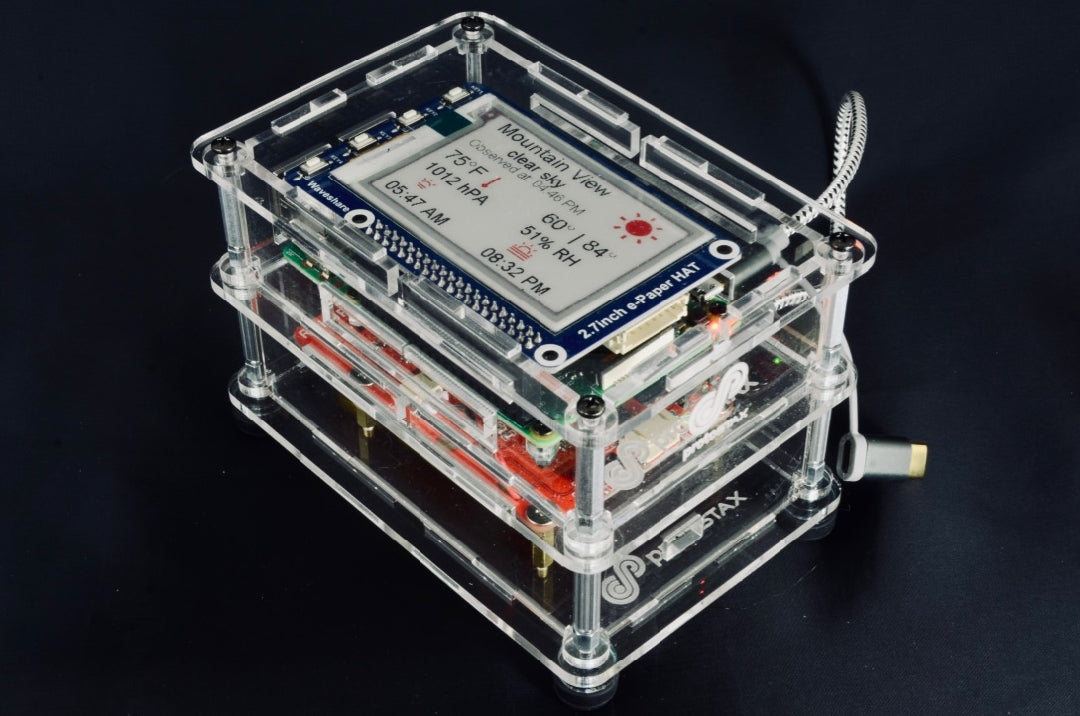

  • ProtoStax Enclosure for RPI UPSPack Standard V3 - Vertically Stacked with RPi

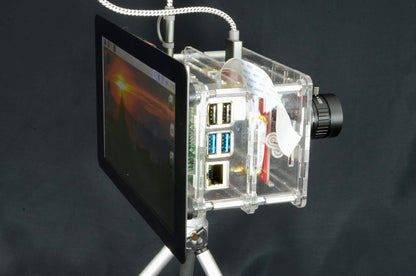

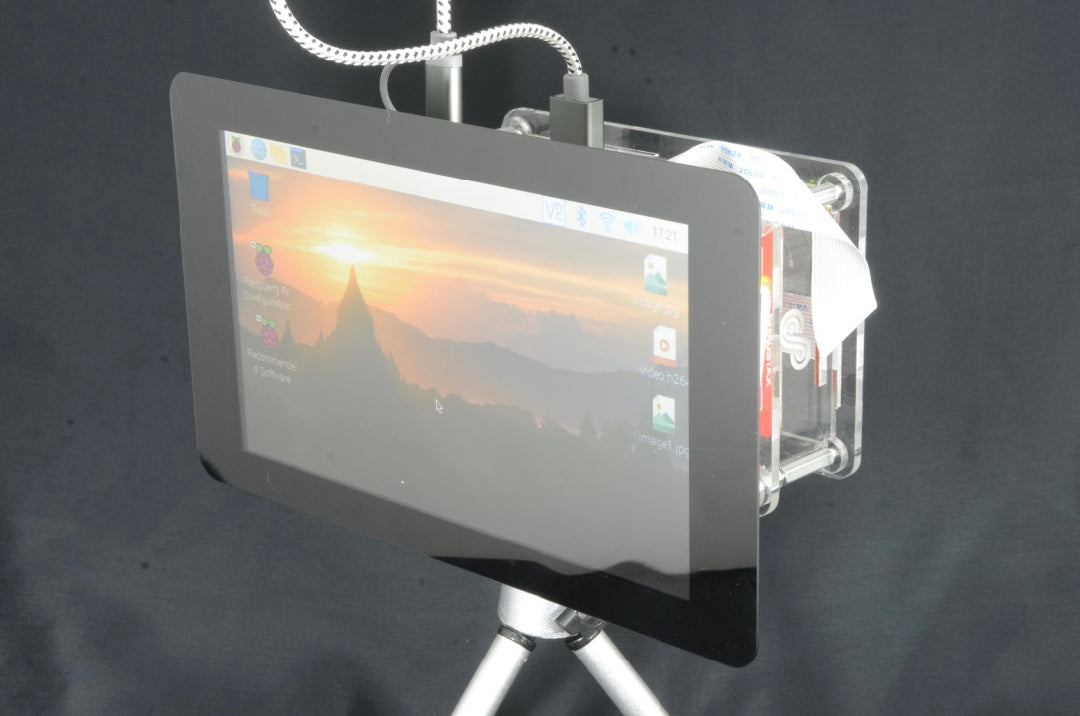

  • ProtoStax Enclosure for RPI UPSPack Standard V3 - Vertically stacked with RPi, HQ Camera and 7-in touch screen display with tripod mount
  • ProtoStax Enclosure for RPI UPSPack Standard V3 - Vertically stacked with RPi, HQ Camera and 7-in touch screen display with tripod mount
1 8

ProtoStax Enclosure for RPI UPSPack Standard V3

ProtoStax Enclosure for RPI UPSPack Standard V3

$15.00 USD
$15.00 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 2 left

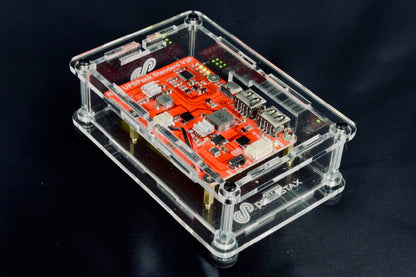

The stackable, modular, extensible and hackable enclosure for your RPI UPSPack Standard V3

The case has an internal clearance of over 1.2 inches, which gives you ample room house your RPI UPSPack Board and the Lipo Battery!

The RPI UPSPack Standard V3 has the same dimensions of a Raspberry Pi 3B+/4B, and can provide up to 3A of power at 5 V.

You can stack this case vertically with any ProtoStax Enclosure to provide UPS for your Raspberry Pi, or just portable power for any other project (Arduino, Particle, Adafruit Feather, ESP, etc)

 For Raspberry Pis, you can use the ProtoStax Enclosure for Raspberry Pi A+, ProtoStax Enclosure for Raspberry Pi B+/4B and ProtoStax Enclosure for Raspberry Pi Zero to power your projects and handle power outages or more portable power (for example, using it with the camera).

This is one handy UPS or Power Pack!

DOES NOT INCLUDE the RPI UPSPack Standard V3 - you can purchase that separate from Amazon or other sellers.

Features

  • Fits the RPI UPSPack Standard V3 and Lipo battery.
  • Internal clearance of over 1.2 inches fits the board and battery comfortably
  • Made from high quality cast acrylic
  • Clear acrylic provides a beautiful finish with a modern visual design with full view of your electronics
  • Pre-drilled and threaded mounting holes in the base plate allow you to directly screw the board in without needing additional nuts, making it very easy and elegant for you to use. A thoughtful feature that you will surely appreciate if you have larger hands and dealing with tiny M2.5 nuts!
  • Metal standoffs and screws provide solid and durable support
  • Rubber Feet protect your table surface while providing maximum airflow by elevating the enclosure
  • Cutouts leave all ports accessible, including USB and Power ports and power switch.
  • Cable Management: Easily accessible cable management cutouts in the side walls allow you to smoothly insert your cables and access wiring to external systems. In the Open Configuration, the Wall slots on the top and bottom plates (where the side walls usually insert into) can also be used for cable management for even more accessibility and organization.
  • You can mix, match, customize, and expand your project enclosure because ProtoStax enclosures are modular and stackable and work with each other.
  • Extension kits and add-ons add functionality to your enclosure.





List of Compatible Devices

RPI UPSPack Standard V3




Technical Details

  • 4.84 in length x 3.24 in width x 1.4665 in height (1.8 in height including rubber feet) (122.94 mm x 82.3mm x 37.25 mm (45.72mm including rubber feet))
  • Usable space inside: 4 in length x 2.4 in width x 1.2165 in height (101.6mm x 60.96mm x 30.9mm)

Visualize in your space using AR!

View full details

Visit Our Learning Hub

• Assembly Instructions - Video Tutorials & User Manual with step-by-step instructions.

• Sample Projects - with full instructions & code. Find inspiration for your next project.

• Tips and Tricks - Tips & tidbits on Electronics and Making to get you on your way!

Take me to the Learning Hub!

Featured projects

  • Getting Started w/ ProtoStax Enclosures

    Getting Started w/ ProtoStax Enclosures

    See how to set up & use ProtoStax enclosures for your next DIY Electronics/Computing project with Arduino, Raspberry Pi & other MCUs & SBCs

View all

ProtoStax Enclosures are Stackable, Modular & Extensible

ProtoStax eases your path from Prototype to Product. Go from a jumble of wires and boards to an attractive product you can proudly display on your coffee table, carry around, share with friends and family, or even sell to customers! Make your prototypes useable and attractive with ProtoStax!

Modular

  • ProtoStax Enclosure / Case in Platform Configuration showing Arduino. Pre-drilled and threaded mounting holes make assembly easy and convenient. Acrylic risers elevate board off the surface for improved airflow

    Use it as a prototyping plate, with full and open access to your device while prototyping. Rubber feet protect your board and your table top!

  • ProtoStax Enclosure / Case in Open Configuration showing Arduino

    Omit the side walls and just add the top for an open configuration with more airflow and open access.

  • ProtoStax Enclosure / Case in Fully Closed Configuration showing Arduino

    Add side walls and the top to form a fully enclosed case for maximum protection.

    The cases offer connectivity to external systems using our unique cable management methods (see features above)

Extensible

Extension kits and Add-Ons allow you to add functionality to your enclosure. Add a fan or two, switches, camera & tripod mount, and more! Thanks to our modular design, you can simply swap out existing pieces with new pieces that offer additional functionality like displays, switches, fans, cameras, tripod mounts are more.

Just filter by "extension kit" or "add-on" in the main shopping page to view the choices, or click below!

Check out Extension Kits

Stackable

All ProtoStax cases are compatible with each other and can be stacked side-by-side (horizontally) or one on top of the other (vertically). Mix-and-match multiple ProtoStax cases and put together a larger enclosure from the individual ones! Our Raspberry Pi + Breadboard, or Arduino + Breadboard enclosures are popular bundles, allowing to include more breadboarded circuitry while still making your prototype attractive and usable. Our stacking features and interoperability between enclosures means you can create your ultimate hybrid Raspberry Pi cluster/tower, mix-and-matching various Raspberry Pi A+, B/B+, Zero boards as you see fit!
